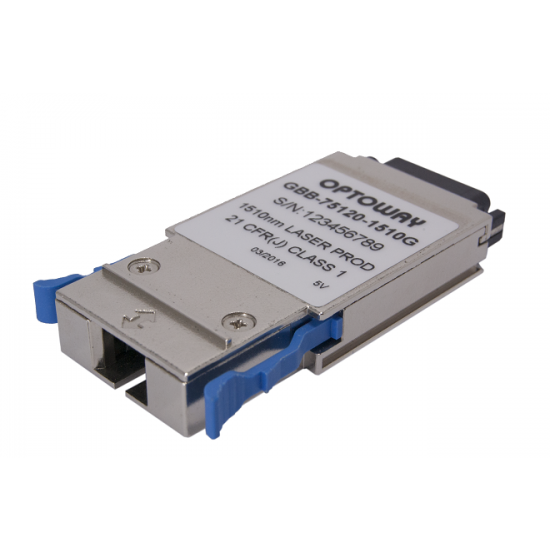

GBIC 1000BASE-BX - 1 Fiber

1 / 1
- Gigabit Interface Converter ( GBIC ) with standard SC Connector
- 1-Fiber GBIC for 1000BASE
- Single 5V Power Supply Voltage
- RoHS Compliant


GBIC 1-Fiber MM
Product Number Bit Rate 1000
BASE		 Reach TX RX Package Temperature
Range		 TX Power RX Sens. Data
Sheet
GBB-7400G 1.25/1.063 Gb/s   0~500 m 1310 nm 1550 nm SC GBIC 0 ~ 70°C -4 to -10 dBm -17 dBm
GBB-7500G 1.25/1.063 Gb/s   0~500 m 1550 nm 1310 nm SC GBIC 0 ~ 70°C -4 to -10 dBm -17 dBm


GBIC 1-Fiber SM (1310/1490nm)
Product Number Bit Rate 1000
BASE		 Reach TX RX Package Temperature
Range		 TX Power RX Sens. Data
Sheet
GBB-7810G 1.25/1.063 Gb/s BX10 10 km 1310 nm 1490 nm SC GBIC 0 ~ 70°C -3 to -9 dBm -20 dBm
GBB-7910G 1.25/1.063 Gb/s BX10 10 km 1490 nm DFB 1310 nm SC GBIC 0 ~ 70°C -3 to -9 dBm -20 dBm
GBB-7820G 1.25/1.063 Gb/s   20 km 1310 nm 1490 nm SC GBIC 0 ~ 70°C -3 to -8 dBm -22 dBm
GBB-7920G 1.25/1.063 Gb/s   20 km 1490 nm DFB 1310 nm SC GBIC 0 ~ 70°C -3 to -8 dBm -22 dBm
GBB-7840G 1.25/1.063 Gb/s   40 km 1310 nm DFB 1490 nm SC GBIC 0 ~ 70°C  2 to -3 dBm -23 dBm
GBB-7940G 1.25/1.063 Gb/s   40 km 1490 nm DFB 1310 nm SC GBIC 0 ~ 70°C  2 to -3 dBm -23 dBm


GBIC 1-Fiber SM
Product Number Bit Rate 1000
BASE		 Reach TX RX Package Temperature
Range		 TX Power RX Sens. Data
Sheet
GBB-7410G 1.25/1.063 Gb/s BX10   10 km 1310 nm 1550 nm SC GBIC 0 ~ 70°C -3 to -9 dBm -20 dBm
GBB-7510G 1.25/1.063 Gb/s BX10   10 km 1550 nm DFB 1310 nm SC GBIC 0 ~ 70°C -3 to -9 dBm -20 dBm
GBB-7420G 1.25/1.063 Gb/s     20 km 1310 nm 1550 nm SC GBIC 0 ~ 70°C -3 to -8 dBm -22 dBm
GBB-7520G 1.25/1.063 Gb/s     20 km 1550 nm DFB 1310 nm SC GBIC 0 ~ 70°C -3 to -8 dBm -22 dBm
GBB-7440G 1.25/1.063 Gb/s     40 km 1310 nm DFB 1550 nm SC GBIC 0 ~ 70°C  2 to -3 dBm -23 dBm
GBB-7540G 1.25/1.063 Gb/s     40 km 1550 nm DFB 1310 nm SC GBIC 0 ~ 70°C  2 to -3 dBm -23 dBm
GBB-7580-1510G 1.25/1.063 Gb/s     80 km 1510 nm DFB 1590 nm SC GBIC 0 ~ 70°C  3 to -2 dBm -26 dBm
GBB-7580-1590G 1.25/1.063 Gb/s     80 km 1590 nm DFB 1510 nm SC GBIC 0 ~ 70°C  3 to -2 dBm -26 dBm
GBB-75120-1510G 1.25/1.063 Gb/s   120 km 1510 nm DFB 1590 nm SC GBIC 0 ~ 70°C  3 to -2 dBm -33 dBm
GBB-75120-1590G 1.25/1.063 Gb/s   120 km 1590 nm DFB 1510 nm SC GBIC 0 ~ 70°C   3 to -2 dBm -33 dBm
