1G/2.5G/3.2Gbps

Multi-rate - 3.2 Gb/s SFP CWDM

1 / 1

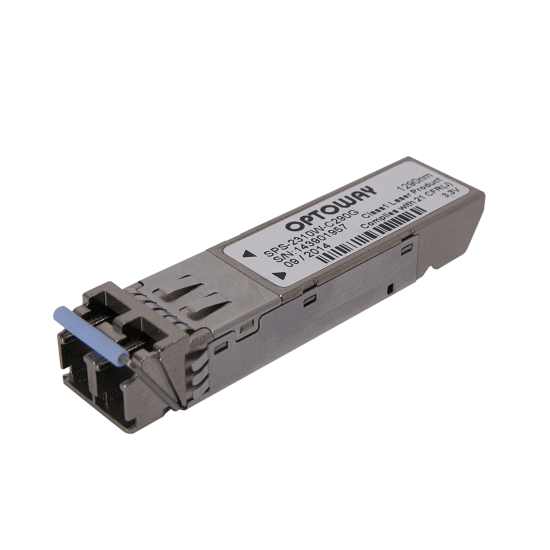

3.2Gb/s Multi-rate CWDM SFP SM LC
Product Number Bit Rate SONET
/SDH		 Power Budget Wavelength Package Temperature
Range		 TX Power RX Sens. Data
Sheet
SPS-9340R-CXX0G Multi-rate*   >18 dB CWDM** LC SFP    0 ~ 70°C 3 to -2 dBm -20 dBm
SPS-9340BR-CXX0G Multi-rate*   >18 dB CWDM** LC SFP   -5 ~ 85°C 3 to -2 dBm -20 dBm
SPS-9340AR-CXX0G Multi-rate*   >18 dB CWDM** LC SFP -40 ~ 85°C 3 to -2 dBm -20 dBm
SPS-9380R-CXX0G Multi-rate*   >28 dB CWDM** LC SFP    0 ~ 70°C 5 to 0 dBm -28 dBm
SPS-9380BR-CXX0G Multi-rate*   >28 dB CWDM** LC SFP   -5 ~ 85°C 5 to 0 dBm -28 dBm
SPS-9380AR-CXX0G Multi-rate*   >28 dB CWDM** LC SFP -40 ~ 85°C 5 to 0 dBm -28 dBm
SPS-93100R-CXX0G Multi-rate*   >31 dB CWDM** LC SFP    0 ~ 70°C 6 to 3 dBm -28 dBm
SPS-93100BR-CXX0G Multi-rate*   >31 dB CWDM** LC SFP   -5 ~ 85°C 6 to 3 dBm -28 dBm
SPS-93100AR-CXX0G Multi-rate*   >31 dB CWDM** LC SFP -40 ~ 85°C 6 to 3 dBm -28 dBm
SPS-9340RW-CXX0G Multi-rate*   >18 dB CWDM** LC SFP with DMI    0 ~ 70°C 3 to -2 dBm -20 dBm
SPS-9340BRW-CXX0G Multi-rate*   >18 dB CWDM** LC SFP with DMI   -5 ~ 85°C 3 to -2 dBm -20 dBm
SPS-9340ARW-CXX0G Multi-rate*   >18 dB CWDM** LC SFP with DMI -40 ~ 85°C 3 to -2 dBm -20 dBm
SPS-9380RW-CXX0G Multi-rate*   >28 dB CWDM** LC SFP with DMI    0 ~ 70°C 5 to 0 dBm -28 dBm
SPS-9380BRW-CXX0G Multi-rate*   >28 dB CWDM** LC SFP with DMI   -5 ~ 85°C 5 to 0 dBm -28 dBm
SPS-9380ARW-CXX0G Multi-rate*   >28 dB CWDM** LC SFP with DMI -40 ~ 85°C 5 to 0 dBm -28 dBm
SPS-93100RW-CXX0G Multi-rate*   >31 dB CWDM** LC SFP with DMI    0 ~ 70°C 6 to 3 dBm -28 dBm
SPS-93100BRW-CXX0G Multi-rate*   >31 dB CWDM** LC SFP with DMI   -5 ~ 85°C 6 to 3 dBm -28 dBm
SPS-93100ARW-CXX0G Multi-rate*   >31 dB CWDM** LC SFP with DMI -40 ~ 85°C 6 to 3 dBm -28 dBm
*  3.185Gb/s,3.125Gb/s, 2.67Gb/s / OC-48 / 2X FC / GbE / 1X FC / OC-12 / OC-3
**18 Wavelength : from 1270 nm to 1610 nm , each step 20 nm
