PRODUCTS
Transmitter

FP LD - 1530nm

1 / 1

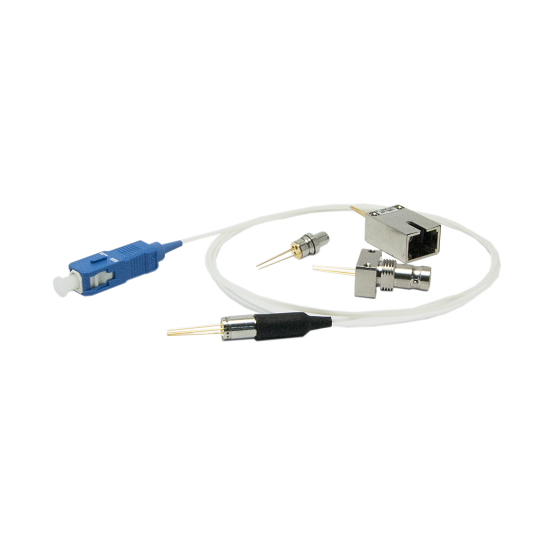

Pigtail Package
Product Number Wavelength Speed Pout Temperature Isolator Package Data
Sheet
FL-5300 1530 nm 1.25 Gb/s 0.2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-5310 1530 nm 1.25 Gb/s 0.5 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-5320 1530 nm 1.25 Gb/s    1 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-5330 1530 nm 1.25 Gb/s    2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-5340 1530 nm 1.25 Gb/s    3 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-5300S 1530 nm   2.5 Gb/s 0.2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-5310S 1530 nm   2.5 Gb/s 0.5 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-5320S 1530 nm   2.5 Gb/s    1 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-5330S 1530 nm   2.5 Gb/s    2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-5340S 1530 nm   2.5 Gb/s    3 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber


Receptacle Package
Product Number Wavelength Speed Pout Temperature Isolator Package Data
Sheet
FL-5500 1530 nm 1.25 Gb/s 0.2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-5510 1530 nm 1.25 Gb/s 0.5 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-5520 1530 nm 1.25 Gb/s    1 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-5530 1530 nm 1.25 Gb/s    2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-5540 1530 nm 1.25 Gb/s    3 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-5500S 1530 nm   2.5 Gb/s 0.2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-5510S 1530 nm   2.5 Gb/s 0.5 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-5520S 1530 nm    2.5 Gb/s    1 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-5530S 1530 nm   2.5 Gb/s    2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-5540S 1530 nm   2.5 Gb/s    3 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
