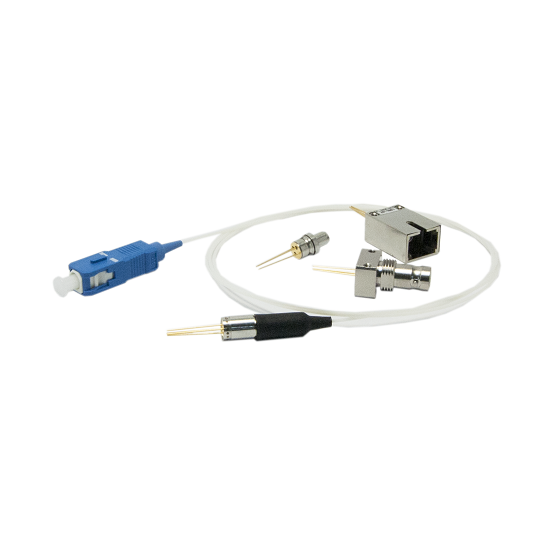

Transmitter

FP LD - 1310nm

1 / 1
Pigtail Package
Product Number Wavelength Speed Pout Temperature Isolator Package Data
Sheet
FL-3300 1310 nm 1.25 Gb/s 0.2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-3310 1310 nm 1.25 Gb/s 0.5 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-3320 1310 nm 1.25 Gb/s    1 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-3330 1310 nm 1.25 Gb/s    2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-3340 1310 nm 1.25 Gb/s    3 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-3300S 1310 nm   2.5 Gb/s 0.2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-3310S 1310 nm   2.5 Gb/s 0.5 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-3320S 1310 nm   2.5 Gb/s    1 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-3330S 1310 nm   2.5 Gb/s    2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber
FL-3340S 1310 nm   2.5 Gb/s    3 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber


Receptacle Package
Product Number Wavelength Speed Pout Temperature Isolator Package Data
Sheet
FL-3500 1310 nm 1.25 Gb/s 0.2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-3510 1310 nm 1.25 Gb/s 0.5 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-3520 1310 nm 1.25 Gb/s    1 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-3530 1310 nm 1.25 Gb/s    2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-3540 1310 nm 1.25 Gb/s    3 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-3500S 1310 nm   2.5 Gb/s 0.2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-3510S 1310 nm   2.5 Gb/s 0.5 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-3520S 1310 nm   2.5 Gb/s    1 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-3530S 1310 nm   2.5 Gb/s    2 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
FL-3540S 1310 nm   2.5 Gb/s    3 mW -40 ~ 85°C No/Yes 4-pin coaxial with SM fiber receptacle
