25G/50G/100G

25Gb/s 2-Fiber

1 / 1
- Compliant with SFP28 MSA
- Uncooled 4-Wavelength CWDM DFB LD: from 1270 nm to 1330 nm
- Temperature-stabilized DWDM EML Transmitter
- Support 25G Ethernet
- Support CPRI Option 10
- Low Power Dissipation.
- Duplex LC Connector
- Single 3.3 V Power Supply
- RoHS-6 Compliant (lead-free)


25Gb/s SFP28 MM LC
Product Number Bit Rate 25GBASE / CPRI Reach Wavelength Package Temperature
Range		 Data
Sheet
SPM-2500WG Up to 25.78 Gb/s SR / Option 10  100 m  850 nm  SFP28 with DMI    0 ~ 70°C
SPM-2500BWG Up to 25.78 Gb/s SR / Option 10  100 m  850 nm  SFP28 with DMI -10 ~ 85°C
SPM-2500AWG Up to 25.78 Gb/s SR / Option 10  100 m  850 nm  SFP28 with DMI -40 ~ 85°C


25Gb/s SFP28 SM LC
Product Number Bit Rate 25GBASE / CPRI Reach Wavelength Package Temperature
Range		 Data
Sheet

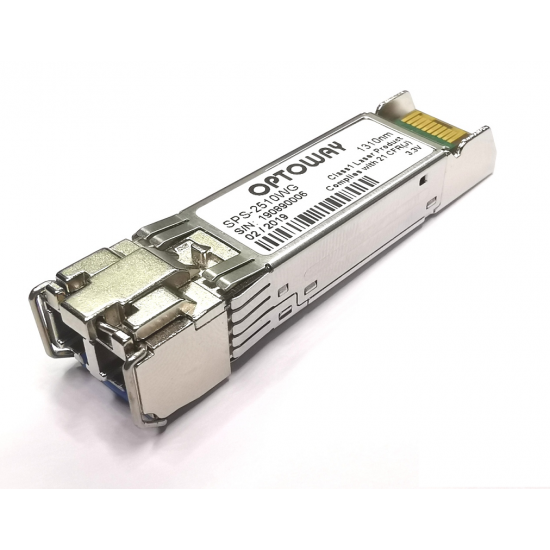

SPS-2500WG Up to 25.78 Gb/s   300 m 1310 nm SFP28 with DMI    0 ~ 70°C
SPS-2500BWG Up to 25.78 Gb/s   300 m 1310 nm SFP28 with DMI -10 ~ 85°C
SPS-2500AWG Up to 25.78 Gb/s   300 m 1310 nm SFP28 with DMI -40 ~ 85°C
SPS-2502WG Up to 25.78 Gb/s LR Lite / Option 10  2 km 1310 nm DFB SFP28 with DMI    0 ~ 70°C
SPS-2502BWG Up to 25.78 Gb/s LR Lite / Option 10  2 km 1310 nm DFB SFP28 with DMI -10 ~ 85°C
SPS-2502AWG Up to 25.78 Gb/s LR Lite / Option 10  2 km 1310 nm DFB SFP28 with DMI -40 ~ 85°C
SPS-2510WG Up to 25.78 Gb/s LR / Option 10 10 km 1310 nm DFB SFP28 with DMI    0 ~ 70°C
SPS-2510BWG Up to 25.78 Gb/s LR / Option 10 10 km 1310 nm DFB SFP28 with DMI -10 ~ 85°C
SPS-2510AWG Up to 25.78 Gb/s LR / Option 10 10 km 1310 nm DFB SFP28 with DMI -40 ~ 85°C
SPS-2520WG Up to 25.78 Gb/s LR / Option 10 20 km 1310 nm DFB SFP28 with DMI    0 ~ 70°C
SPS-2520BWG Up to 25.78 Gb/s LR / Option 10 20 km 1310 nm DFB SFP28 with DMI -10 ~ 85°C
SPS-2520AWG Up to 25.78 Gb/s LR / Option 10 20 km 1310 nm DFB SFP28 with DMI -40 ~ 85°C
SPS-2530WG Up to 25.78 Gb/s ER Lite / Option 10 30 km 1310 nm DFB SFP28 with DMI    0 ~ 70°C
SPS-2530BWG Up to 25.78 Gb/s ER Lite / Option 10 30 km 1310 nm DFB SFP28 with DMI -10 ~ 85°C
SPS-2530AWG Up to 25.78 Gb/s ER Lite / Option 10 30 km 1310 nm DFB SFP28 with DMI -40 ~ 85°C
SPS-2540WG Up to 25.78 Gb/s ER / Option 10 40 km 1310 nm DFB SFP28 with DMI    0 ~ 70°C
SPS-2540BWG Up to 25.78 Gb/s ER / Option 10 40 km 1310 nm DFB SFP28 with DMI -10 ~ 85°C
SPS-2540AWG Up to 25.78 Gb/s ER / Option 10 40 km 1310 nm DFB SFP28 with DMI  40 ~ 85°C


25Gb/s CWDM SFP28 SM LC
Product Number Bit Rate 25GBASE / CPRI Power Budget Wavelength Package Temperature
Range		 Data
Sheet
SPS-2502W-CXX0G Up to 25.78 Gb/s LR / Option 10 >   8.3 dB CWDM* SFP28 with DMI    0 ~ 70°C
SPS-2502BW-CXX0G Up to 25.78 Gb/s LR / Option 10 >   8.3 dB CWDM* SFP28 with DMI -10 ~ 85°C
SPS-2502AW-CXX0G Up to 25.78 Gb/s LR / Option 10 >   8.3 dB CWDM* SFP28 with DMI -40 ~ 85°C
SPS-2510W-CXX0G Up to 25.78 Gb/s LR / Option 10 > 14.3 dB CWDM* SFP28 with DMI    0 ~ 70°C
SPS-2510BW-CXX0G Up to 25.78 Gb/s LR / Option 10 > 14.3 dB CWDM* SFP28 with DMI -10 ~ 85°C
SPS-2510AW-CXX0G Up to 25.78 Gb/s LR / Option 10 > 14.3 dB CWDM* SFP28 with DMI -40 ~ 85°C
SPS-2520W-CXX0G Up to 25.78 Gb/s LR / Option 10 > 17.3 dB CWDM** SFP28 with DMI    0 ~ 70°C
SPS-2520BW-CXX0G Up to 25.78 Gb/s LR / Option 10 > 17.3 dB CWDM** SFP28 with DMI -10 ~ 85°C
SPS-2520AW-CXX0G Up to 25.78 Gb/s LR / Option 10 > 17.3 dB CWDM** SFP28 with DMI -40 ~ 85°C
SPS-2530W-CXX0G Up to 25.78 Gb/s LR / Option 10 > 21.4 dB CWDM** SFP28 with DMI    0 ~ 70°C
SPS-2530BW-CXX0G Up to 25.78 Gb/s LR / Option 10 > 21.4 dB CWDM** SFP28 with DMI -10 ~ 85°C
SPS-2530AW-CXX0G Up to 25.78 Gb/s LR / Option 10 > 21.4 dB CWDM** SFP28 with DMI -40 ~ 85°C
*   6-Wavelength from 1270 nm to 1370 nm, each step 20 nm, for SPS-2502(B)(A)W-CXX0G, SPS-2510(B)(A)W-CXX0G
** 4-Wavelength from 1270 nm to 1330 nm, each step 20 nm, for SPS-2520(B)(A)W-CXX0G, SPS-2530(B)(A)W-CXX0G


25GE SFP28 SM LC DWDM
Product Number Bit Rate 25GBASE / CPRI Reach Spacing Wavelength Package Temperature
Range		 Data
Sheet
SPS-2511W-DXXG* Up to 25.78 Gb/s LR / Option 10 10 km 100GHz DWDM SFP28 with DMI    0 ~ 70°C
SPS-2511BW-DXXG* Up to 25.78 Gb/s LR / Option 10 10 km 100GHz DWDM SFP28 with DMI -10 ~ 85°C
SPS-2511AW-DXXG* Up to 25.78 Gb/s LR / Option 10 10 km 100GHz DWDM SFP28 with DMI -40 ~ 85°C
