- Compliant to IEEE 802.3az
- 10/100/1000Mbps Ethernet over Category 5 Cable
- Compact RJ-45 Connector Assembly
- Detailed Product Information in EEPROM
- Access to Physical Layer IC via 2-wire Serial Bus
- Single 3.3 V Power Supply
- RoHS-6 Compliant (lead-free)

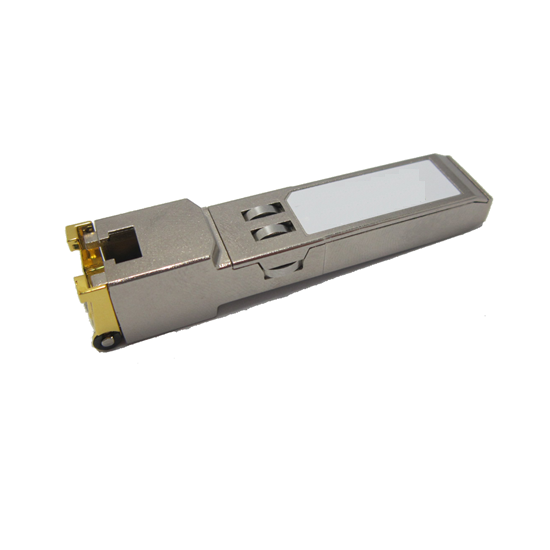

1.25Gb/s SFP Compact RJ-45 Connector Assembly
| Product Number | Bit Rate | Reach | Package | Temperature Range |
Data Sheet |
| SPE-7100G | Up to 1.25 Gb/s | 100 m | SFP+ with RJ-45 COPPER CONNECTOR | 0 ~ 70°C |  |
| SPE-7101G | Up to 1.25 Gb/s | 100 m | SFP+ with RJ-45 COPPER CONNECTOR | 0 ~ 70°C | |
| SPE-7100-SG | Up to 1.25 Gb/s | 100 m | SFP+ with RJ-45 COPPER CONNECTOR | 0 ~ 70°C | |
| SPE-7101-SG | Up to 1.25 Gb/s | 100 m | SFP+ with RJ-45 COPPER CONNECTOR | 0 ~ 70°C | |
| SPE-7100AG | Up to 1.25 Gb/s | 100 m | SFP+ with RJ-45 COPPER CONNECTOR | -40 ~ 85°C | |
| SPE-7101AG | Up to 1.25 Gb/s | 100 m | SFP+ with RJ-45 COPPER CONNECTOR | -40 ~ 85°C | |
| SPE-7100A-SG | Up to 1.25 Gb/s | 100 m | SFP+ with RJ-45 COPPER CONNECTOR | -40 ~ 85°C | |
| SPE-7101A-SG | Up to 1.25 Gb/s | 100 m | SFP+ with RJ-45 COPPER CONNECTOR | -40 ~ 85°C | |
SPE-7100G, SPE-7101G, SPE-7100AG and SPE-7101AG 1000Mbps with a SERDES interface that does not
support SGMII, these modules will operate at 1000BASE-T only.
SPE-7100-SG, SPE-7101-SG, SPE-7100A-SG and SPE-7101A-SG 10/100/1000Mbps operation requires the host
system to have an SGMII interface without clocks and auto-negotiation advertise all capabilities 10/100/1000Mbps.
