12G-SDI

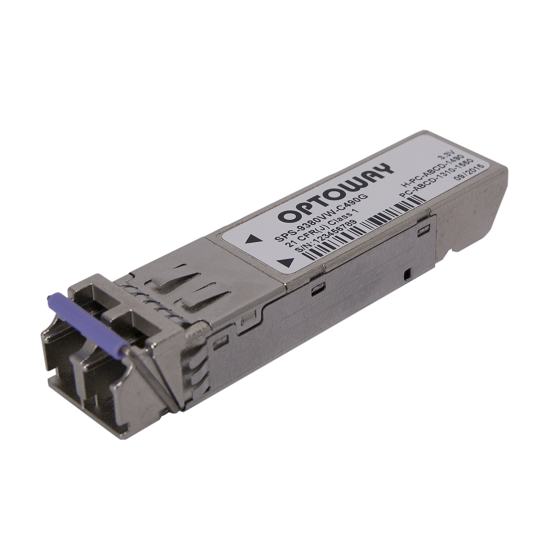

DWDM：12G-SDI SFP+ (Full Pathological Support)

1 / 1
DWDM：12Gb/s SM Video SFP+ Transmitter
Product Number Type Bit Rate TX1 TX2 Package Temperature
Range		 Data
Sheet
Wavelength Power Wavelength Power
SPS-2310VMW-DXXDYYG* 2-TX Up to 12 Gb/s DWDM  5 to 0 dBm DWDM  5 to 0 dBm LC SFP+ with DMI    0 ~ 70 °C
SPS-2310AVMW-DXXDYYG* 2-TX Up to 12 Gb/s DWDM  5 to 0 dBm DWDM  5 to 0 dBm LC SFP+ with DMI -40 ~ 85 °C
SPS-2312VMW-DXXDYYG* 2-TX Up to 12 Gb/s DWDM  5 to 0 dBm DWDM  5 to 0 dBm LC SFP+ with DMI    0 ~ 70 °C
SPS-2312AVMW-DXXDYYG* 2-TX Up to 12 Gb/s DWDM  5 to 0 dBm DWDM  5 to 0 dBm LC SFP+ with DMI -40 ~ 85 °C
SPS-2310VMW-1TDXXG* 1-TX Up to 12 Gb/s DWDM  5 to 0 dBm     LC SFP+ with DMI    0 ~ 70 °C
SPS-2310AVMW-1TDXXG* 1-TX Up to 12 Gb/s DWDM  5 to 0 dBm     LC SFP+ with DMI -40 ~ 85 °C
SPS-2312VMW-1TDXXG* 1-TX Up to 12 Gb/s DWDM  5 to 0 dBm     LC SFP+ with DMI    0 ~ 70 °C
SPS-2312AVMW-1TDXXG* 1-TX Up to 12 Gb/s DWDM  5 to 0 dBm     LC SFP+ with DMI -40 ~ 85 °C
* XX is for Channel 1 and YY is for Channel 2 DWDM Wavelength


DWDM：12Gb/s SM Video SFP+ 1-Transmitter + 1-Receiver
Product Number Type Bit Rate Power Budget Package Temperature
Range		 Data
Sheet
SPS-2316VMW-DXX1RG 1-TX + 1-RX Up to 12 Gb/s >11 dB LC SFP+ with DMI    0 ~ 70 °C
SPS-2316AVMW-DXX1RG 1-TX + 1-RX Up to 12 Gb/s >11 dB LC SFP+ with DMI -40 ~ 85 °C
SPS-2317VMW-DXX1RG 1-TX + 1-RX Up to 12 Gb/s >11 dB LC SFP+ with DMI    0 ~ 70 °C
SPS-2317AVMW-DXX1RG 1-TX + 1-RX Up to 12 Gb/s >11 dB LC SFP+ with DMI -40 ~ 85 °C


DWDM：12Gb/s SM Video SFP+ Transceiver (same pin assignment as SFP+ MSA)
Product Number Bit Rate Power Budget Package Temperature
Range		 Data
Sheet
SPS-2316VMW-DXXG Up to 12 Gb/s >11 dB LC SFP+ with DMI    0 ~ 70 °C
SPS-2316AVMW-DXXG Up to 12 Gb/s >11 dB LC SFP+ with DMI -40 ~ 85 °C
SPS-2317VMW-DXXG Up to 12 Gb/s >11 dB LC SFP+ with DMI    0 ~ 70 °C
SPS-2317AVMW-DXX0G Up to 12 Gb/s >11 dB LC SFP+ with DMI -40 ~ 85 °C
