25G/50G/100G

100Gb/s

Compliant with SFF-8636
- Compliant with QSFP28 MSA
- Compliant with IEEE 802.3bm 100GBASE-SR4

- Compliant with 100G CWDM4 MSA
- Compliant with 100G 4WDM-10 MSA
- Compliant with IEEE 802.3 100GBASE-LR4

- Support 100GBASE-ER4 & 100GBASE-ZR4
- Uncooled CWDM 4-Wavelength DFB LDs: 1271, 1291, 1311 and 1331 nm
- 2-Wire Interface for Integrated Digital Diagnostic Monitoring

- Maximum Power Dissipation < 2.0W for QPM-2500WG
Maximum Power Dissipation < 3.5W for QPS-2502WG,
QPS-2510WG, QPS-2511WG
Maximum Power Dissipation < 4.5W for QPS-2510AWG

- Maximum Power Dissipation < 6W for QPS-2540WG & QPS-2580WG
- Single +3.3V Power Supply
- RoHS Compliant (lead-free)

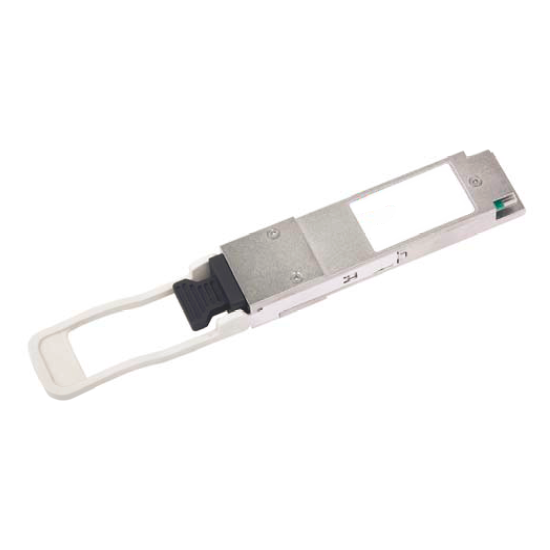

100GBASE QSFP28 MM MPO
Product Number Bit Rate 100GBASE Reach Wavelength Package Temperature
Range
Data Sheet
QPM-2500WG 100 Gb/s SR4 70/100 m* 850 nm VCSEL QSFP+ with DMI    0 ~ 70°C
* 70m for OM3 MMF and 100 m for OM4 MMF.


CWDM 4-Wavelength 100GBASE QSFP28 SM
Product Number Bit Rate 100GBASE Reach Wavelength Package Temperature
Range
Data Sheet
QPS-2502WG 100 Gb/s CWDM4   2 km CWDM4* QSFP+ with DMI    0 ~ 70°C
QPS-2511WG 100 Gb/s 4WDM-10 10 km CWDM4* QSFP+ with DMI    0 ~ 70°C
CWDM 4-Wavelength DFB LDs: 1271, 1291, 1311 and 1331 nm.


LWDM 4-Wavelength 100GBASE QSFP28 SM
Product Number Bit Rate 100GBASE Reach Wavelength Package Temperature
Range
Data Sheet
QPS-2510WG 100 Gb/s LR4 10 km LWDM4* QSFP+ with DMI    0 ~ 70°C
QPS-2510AWG 100 Gb/s LR4 10 km LWDM4* QSFP+ with DMI -40 ~ 85°C
QPS-2540WG 100 Gb/s ER4 40 km LWDM4** QSFP+ with DMI    0 ~ 70°C
QPS-2580WG 100 Gb/s ZR4 80 km LWDM4** QSFP+ with DMI    0 ~ 70°C
Cooled LWDM 4-Wavelength DML.
** Cooled LWDM 4-Wavelength EML.
