SFF

Gigabit Ethernet 2-fiber

1 / 1

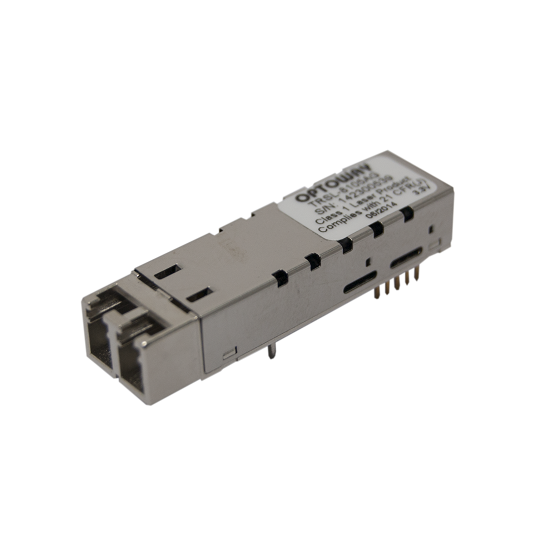

- MSA Small Form Factor (SFF) Transceivers
- 18-wavelength CWDM Transceiver Compliant with ITU-T G.694.2
- 1310 nm and 1550 nm Long-wavelength for Single-mode Fiber Applications
- 850 nm Short-wavelength for Multi-mode Fiber Applications
- Compliant Models for Gigabit Ethernet 1000BASE SX, LX, XD, ZX
- Single 3.3V Supply
- RoHS Compliant


SFF MM LC : 1.25Gbps
Product Number Bit Rate 1000BASE Reach Wavelength Package Temperature
Range		 TX Power RX Sens. Data Sheet
TRML-7100CG 1.25/1.063 Gb/s SX 300*/550 m** 850 nm 2x5 LC    0 ~ 70 °C -4 to -9 dBm -17 dBm
TRML-7100ACG 1.25/1.063 Gb/s SX 300*/550 m** 850 nm 2x5 LC -40 ~ 85 °C -4 to -9 dBm -17 dBm
*using 62.5/125 µm MMF optic cable ; **using 50/125 µm MMF optic cable


SFF SM LC
Product Number Bit Rate 1000BASE Reach Wavelength Package Temperature
Range		 TX Power RX Sens. Data Sheet
TRSL-7110CG 1.25/1.063 Gb/s LX/LH   10 km 1310 nm 2x5 LC    0 ~ 70 °C -3 to -9.5 dBm -20 dBm
TRSL-7110ACG 1.25/1.063 Gb/s LX/LH   10 km 1310 nm 2x5 LC -40 ~ 85 °C -3 to -9.5 dBm -20 dBm
TRSL-7120CG 1.25/1.063 Gb/s     20 km 1310 nm 2x5 LC    0 ~ 70 °C -1 to    -6 dBm -22 dBm
TRSL-7120ACG 1.25/1.063 Gb/s     20 km 1310 nm 2x5 LC -40 ~ 85 °C -1 to    -6 dBm -22 dBm
TRSL-7130CG 1.25/1.063 Gb/s     30 km 1310 nm 2x5 LC    0 ~ 70 °C  0 to    -5 dBm -24 dBm
TRSL-7130ACG 1.25/1.063 Gb/s     30 km 1310 nm DFB 2x5 LC -40 ~ 85 °C  0 to    -5 dBm -24 dBm
TRSL-7140CG 1.25/1.063 Gb/s     40 km 1310 nm DFB 2x5 LC    0 ~ 70 °C   3 to   -2 dBm -24 dBm
TRSL-7140ACG 1.25/1.063 Gb/s     40 km 1310 nm DFB 2x5 LC -40 ~ 85 °C   3 to   -2 dBm -24 dBm
TRSL-7350CG 1.25/1.063 Gb/s XD   50 km 1550 nm DFB 2x5 LC    0 ~ 70 °C  0 to   -5 dBm -24 dBm
TRSL-7350ACG 1.25/1.063 Gb/s XD   50 km 1550 nm DFB 2x5 LC -40 ~ 85 °C  0 to   -5 dBm -24 dBm
TRSL-7380CG 1.25/1.063 Gb/s ZX   80 km 1550 nm DFB 2x5 LC    0 ~ 70 °C  5 to    0 dBm -24 dBm
TRSL-7380ACG 1.25/1.063 Gb/s ZX   80 km 1550 nm DFB 2x5 LC -40 ~ 85 °C   5 to   0 dBm -24 dBm
TRSL-73120CG 1.25/1.063 Gb/s   120 km 1550 nm DFB 2x5 LC    0 ~ 70 °C   5 to   0 dBm -32 dBm
TRSL-73120BCG 1.25/1.063 Gb/s   120 km 1550 nm DFB 2x5 LC -10 ~ 85 °C   5 to   0 dBm -32 dBm
TRSL-73120ACG 1.25/1.063 Gb/s   120 km 1550 nm DFB 2x5 LC -40 ~ 85 °C   5 to   0 dBm -32 dBm
TRSL-73160CG 1.25/1.063 Gb/s   160 km 1550 nm DFB 2x5 LC    0 ~ 70 °C   5 to   2 dBm -34 dBm


 CWDM SFF SM LC
Product Number Bit Rate 1000BASE Power
Budget		 Wavelength Package Temperature
Range		 TX Power RX Sens. Data Sheet
TRSL-7350C-CXX0G 1.25/1.063 Gb/s XD >19 dB CWDM* 2x5 LC   0 ~ 70 °C 0 to -5 dBm -24 dBm
TRSL-7380C-CXX0G 1.25/1.063 Gb/s ZX >24 dB CWDM* 2x5 LC   0 ~ 70 °C 5 to 0 dBm -24 dBm
TRSL-7385C-CXX0G 1.25/1.063 Gb/s   >27 dB CWDM* 2x5 LC   0 ~ 70 °C 5 to 0 dBm -27 dBm
TRSL-73120C-CXX0G 1.25/1.063 Gb/s   >32 dB CWDM* 2x5 LC   0 ~ 70 °C 5 to 0 dBm -32 dBm
TRSL-73160C-CXX0G 1.25/1.063 Gb/s   >36 dB CWDM* 2x5 LC   0 ~ 70 °C 5 to 2 dBm -34 dBm
*18-Wavelength from 1270 nm to 1610 nm, each step 20 nm
