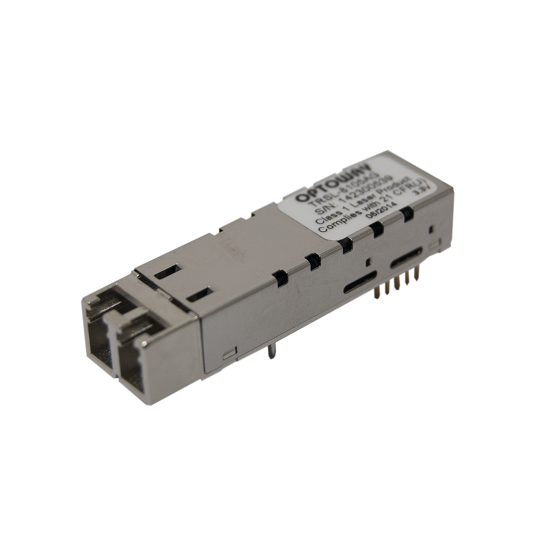

- MSA Small Form Factor (SFF) Transceivers
- 18-wavelength CWDM Transceiver Compliant with ITU-T G.694.2
- Compliant Models for STM-1/OC-3, STM-4/OC-12, and STM-16/OC-48 SR, IR and LR
- Compliant Models for Gigabit Ethernet 1000BASE SX, LX, XD, ZX
- Compliant Models for Fibre Channel FC 4x/2x/1x
- Single 3.3V Supply
- RoHS Compliant
FC 4.25Gb/s SM LC
| Product Number | Bit Rate | FC-PI | Power Budget |
Wavelength | Package | Temperature Range |
TX Power | RX Sens. | Data Sheet |
| TRSL-8340-CXX0G | 4/2/1 Gb/s | 400/200/100 | >18 dBm | CWDM* | 2x5 SFF | 0 ~ 70°C | 4 to 0 dBm | -18 dBm |  |
| TRSL-8380-CXX0G | 4/2/1 Gb/s | 400/200/100 | >28 dBm | CWDM* | 2x5 SFF | 0 ~ 70°C | 5 to -1 dBm | -27 dBm | |
| TRSL-8340W-CXX0G | 4/2/1 Gb/s | 400/200/100 | >18 dBm | CWDM* | 2x7 SFF with DMI | 0 ~ 70°C | 4 to 0 dBm | -18 dBm | |
| TRSL-8380W-CXX0G | 4/2/1 Gb/s | 400/200/100 | >28 dBm | CWDM* | 2x7 SFF with DMI | 0 ~ 70°C | 5 to -1 dBm | -27 dBm | |
SONET OC-48 / SDH STM-16
| Product Number | Bit Rate | SONET /SDH |
Power Budget |
Wavelength | Package | Temperature Range |
TX Power | RX Sens. | Data Sheet |
| TRSL-9340-CXX0G | 2.488 Gb/s | >18 dB | CWDM* | 2x5 LC | 0 ~ 70 °C | 3 to -2 dBm | -20 dBm | |
|
| TRSL-9380-CXX0G | 2.488 Gb/s | >28 dB | CWDM* | 2x5 LC | 0 ~ 70 °C | 5 to 0 dBm | -28 dBm | |
|
| TRSL-9340W-CXX0G | 2.488 Gb/s | >18 dB | CWDM* | 2x10 LC | 0 ~ 70 °C | 3 to -2 dBm | -20 dBm | |
Fibre Channel : 1X / 2X
| Product Number | Bit Rate | FC-PI | Power Budget |
Wavelength | Package | Temperature Range |
TX Power | RX Sens. | Data Sheet |
| TRSL-9380F-CXX0G | 2.125/1.063 Gb/s | 200/100 | >23 dB | CWDM* | 2x5 LC | 0 ~ 70 °C | 5 to 0 dBm | -23 dBm | |
| TRSL-93120F-CXX0G | 2.125/1.063 Gb/s | 200/100 | >30 dB | CWDM* | 2x5 LC | 0 ~ 70 °C | 5 to 0 dBm | -30 dBm | |
Gigabit Ethernet 1000 BASE
| Product Number | Bit Rate | 1000BASE | Power Budget |
Wavelength | Package | Temperature Range |
TX Power | RX Sens. | Data Sheet |
| TRSL-7350C-CXX0G | 1.25/1.063 Gb/s | XD | >19 dB | CWDM* | 2x5 LC | 0 ~ 70 °C | 0 to -5 dBm | -24 dBm | |
| TRSL-7380C-CXX0G | 1.25/1.063 Gb/s | ZX | >24 dB | CWDM* | 2x5 LC | 0 ~ 70 °C | 5 to 0 dBm | -24 dBm | |
| TRSL-7385C-CXX0G | 1.25/1.063 Gb/s | >27 dB | CWDM* | 2x5 LC | 0 ~ 70 °C | 5 to 0 dBm | -27 dBm | |
|
| TRSL-73120C-CXX0G | 1.25/1.063 Gb/s | >32 dB | CWDM* | 2x5 LC | 0 ~ 70 °C | 5 to 0 dBm | -32 dBm | |
|
| TRSL-73160C-CXX0G | 1.25/1.063 Gb/s | >36 dB | CWDM* | 2x5 LC | 0 ~ 70 °C | 5 to 2 dBm | -34 dBm | |
SONET OC-12 / SDH STM-4
| Product Number | Bit Rate | SONET /SDH |
Power Budget |
Wavelength | Package | Temperature Range |
TX Power | RX Sens. | Data Sheet |
| TRSL-5380-CXX0G | 622 Mb/s | >29 dB | CWDM* | 2x5 LC | 0 ~ 70 °C | 5 to 0 dBm | -29 dBm | |
|
| TRSL-5380W-CXX0G | 622 Mb/s | >29 dB | CWDM* | 2x10 LC | 0 ~ 70 °C | 5 to 0 dBm | -29 dBm | |
SONET OC-3 / SDH STM-1
| Product Number | Bit Rate | SONET /SDH |
Power Budget |
Wavelength | Package | Temperature Range |
TX Power | RX Sens. | Data Sheet |
| TRSL-3380-CXX0G | 125/155 Mb/s | >29 dB | CWDM* | 2x5 LC | 0 ~ 70°C | 0 to -5 dBm | -34 dBm | |
|
| TRSL-33100-CXX0G | 125/155 Mb/s | >31 dB | CWDM* | 2x5 LC | 0 ~ 70°C | 2 to -3 dBm | -34 dBm | |
|
| TRSL-33120-CXX0G | 125/155 Mb/s | >34 dB | CWDM* | 2x5 LC | 0 ~ 70°C | 5 to 0 dBm | -34 dBm | |
|
| TRSL-3380W-CXX0G | 125/155 Mb/s | >29 dB | CWDM* | 2x10 LC | 0 ~ 70°C | 0 to -5 dBm | -34 dBm | |
|
| TRSL-33100W-CXX0G | 125/155 Mb/s | >31 dB | CWDM* | 2x10 LC | 0 ~ 70°C | 2 to -3 dBm | -34 dBm | |
|
| TRSL-33120W-CXX0G | 125/155 Mb/s | >34 dB | CWDM* | 2x10 LC | 0 ~ 70°C | 5 to 0 dBm | -34 dBm | |
