PRODUCTS
CWDM/DWDM

3.2 Gb/s DWDM

1 / 1

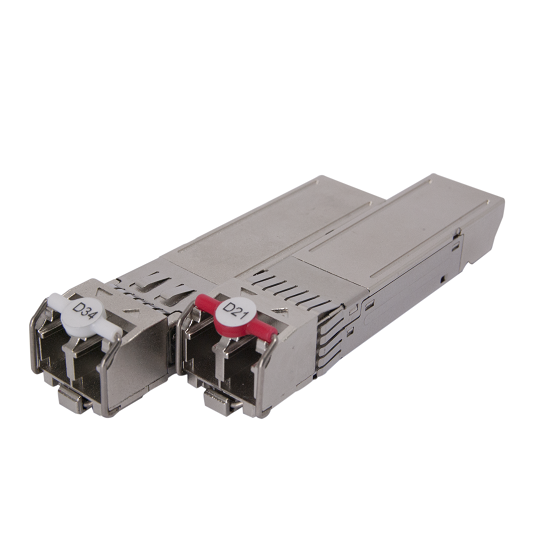

Multi-rate (3.2Gb/s) DWDM SFP SM LC
Product Number Bit Rate SONET
/SDH		 Power
Budget		 Spacing / Wavelength Package Temperature
Range		 TX Power RX Sens. Data
Sheet
SPS-9350RW-DXXG Multi-rate*   >20 dB 100GHz / DWDM SFP with DMI   0 ~ 70°C  5 to 2 dBm -18 dBm
SPS-9350BRW-DXXG Multi-rate*   >20 dB 100GHz / DWDM SFP with DMI -10 ~ 85°C  5 to 2 dBm -18 dBm
SPS-9350ARW-DXXG Multi-rate*   >20 dB 100GHz / DWDM SFP with DMI -40 ~ 85°C  5 to 2 dBm -18 dBm
SPS-9380RW-DXXG Multi-rate*   >28 dB 100GHz / DWDM SFP with DMI   0 ~ 70°C  5 to 0 dBm -28 dBm
SPS-9380BRW-DXXG Multi-rate*   >28 dB 100GHz / DWDM SFP with DMI -10 ~ 85°C  5 to 0 dBm -28 dBm
SPS-9380ARW-DXXG Multi-rate*   >28 dB 100GHz / DWDM SFP with DMI -40 ~ 85°C  5 to 0 dBm -28 dBm
SPS-93120RW-DXXG Multi-rate*   >32 dB 100GHz / DWDM SFP with DMI   0 ~ 70°C  7 to 4 dBm -28 dBm
SPS-93120BRW-DXXG Multi-rate*   >32 dB 100GHz / DWDM SFP with DMI -10 ~ 85°C  7 to 4 dBm -28 dBm
SPS-93120ARW-DXXG Multi-rate*   >32 dB 100GHz / DWDM SFP with DMI -40 ~ 85°C  7 to 4 dBm -28 dBm
*  3.185Gb/s,3.125Gb/s, 2.67Gb/s / OC-48 / 2X FC / GbE / 1X FC / OC-12 / OC-3
