CWDM/DWDM

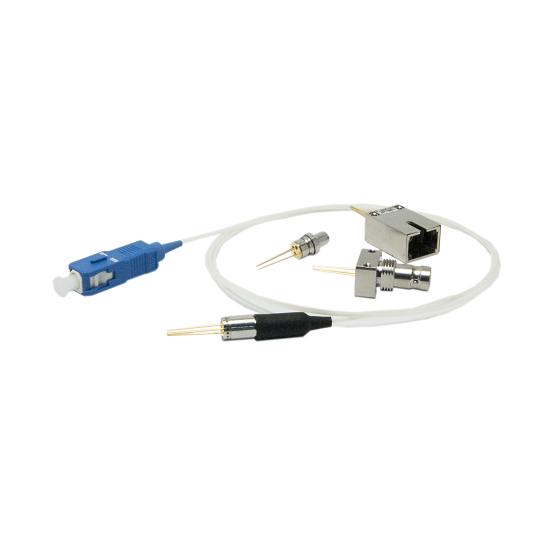

DFB LD - CWDM

TO Package
Product Number Wavelength Speed Pout Temperature Package Data
Sheet
DL-5100-CXX0 CWDM 1.25 Gb/s 5 mW 0 ~ 70°C TO-18, 4-pin, Flat Window Cap
DL-5120-CXX0 CWDM 1.25 Gb/s 5 mW 0 ~ 70°C TO-18, 4-pin, Aspherical Lens Cap
DL-5140-CXX0 CWDM 1.25 Gb/s 5 mW 0 ~ 70°C TO-18, 4-pin, 2 mm Ball Lens Cap
DL-5100S-CXX0 CWDM   2.5 Gb/s 5 mW 0 ~ 70°C TO-18, 4-pin, Flat Window Cap
DL-5120S-CXX0 CWDM   2.5 Gb/s 5 mW 0 ~ 70°C TO-18, 4-pin, Aspherical Lens Cap
DL-5140S-CXX0 CWDM   2.5 Gb/s 5 mW 0 ~ 70°C TO-18, 4-pin, 2 mm Ball Lens Cap


Pigtail Package
Product Number Wavelength Speed Pout Temperature Isolator Package Data
Sheet
DL-5320-CXX0 CWDM 1.25 Gb/s 1 mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5330-CXX0 CWDM 1.25 Gb/s 2 mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5340-CXX0 CWDM 1.25 Gb/s 3 mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5320S-CXX0 CWDM   2.5 Gb/s 1 mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5330S-CXX0 CWDM   2.5 Gb/s 2 mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5340S-CXX0 CWDM   2.5 Gb/s 3 mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber


Receptacle Package
Product Number Wavelength Speed Pout Temperature Isolator Package Data
Sheet
DL-5520-CXX0 CWDM 1.25 Gb/s 1 mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5530-CXX0 CWDM 1.25 Gb/s 2 mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5540-CXX0 CWDM 1.25 Gb/s 3 mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5520S-CXX0 CWDM   2.5 Gb/s 1 mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5530S-CXX0 CWDM   2.5 Gb/s 2 mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
DL-5540S-CXX0 CWDM   2.5 Gb/s 3 mW 0 ~ 70°C No/Yes 4-pin coaxial with SM fiber
