- Single MPO-16/Dual MPO-12 connector options
- 8x100 Gbps 1310nm / CWDM 4-Wavelength 1271,1291,1311,1331 nm EML
- Distance up to 10 km
- Power dissipation < 16W
- Case temperature range 0oC to 70oC
- CMIS 5.0
- OSFP Module Specification Rev 5.0/ Type 2

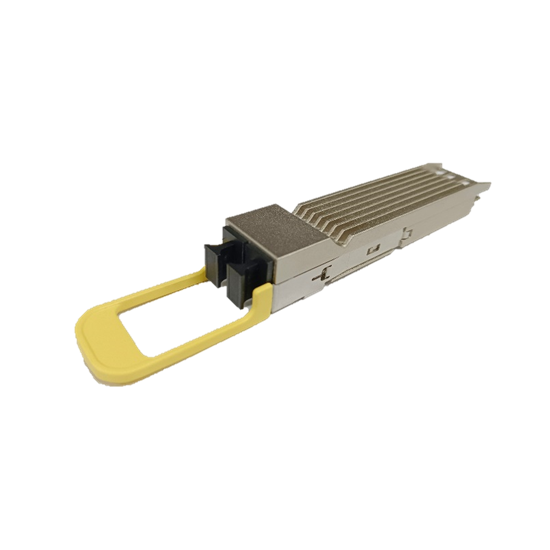

800G OSFP LPO Module
| Product Number | Bit Rate | Application | Reach | Wavelength | Package | Temperature Range |
Data Sheet |
| OPS-5800PW-LPOG | 2x400 Gb/s | 1x800GBASE-DR8 2x400GBASE-DR4 8x100GBASE-DR |
500 m | 1310 nm | OSFP w/ Dual MPO 1x12 | 0 ~ 70°C |  |
| OPS-5801PW-LPOG | 800 Gb/s | 1x800GBASE-DR8 2x400GBASE-DR4 8x100GBASE-DR |
500 m | 1310 nm | OSFP w/ MPO 1x16 | 0 ~ 70°C | |
800G OSFP Retimed Module
| Product Number | Bit Rate | Application | Reach | Wavelength | Package | Temperature Range |
Data Sheet |
| OPS-5800PWG | 2x400 Gb/s | 1x800GBASE-DR8 2x400GBASE-DR4 8x100GBASE-DR |
500 m | 1310 nm | OSFP w/ Dual MPO 1x12 | 0 ~ 70°C | |
| OPS-5801PWG | 800 Gb/s | 1x800GBASE-DR8 2x400GBASE-DR4 8x100GBASE-DR |
500 m | 1310 nm | OSFP w/ MPO 1x16 | 0 ~ 70°C | |
| OPS-5802PWG | 2x400 Gb/s | 1x800GBASE-DR8-2 2x400GBASE-DR4-2 8x100GBASE-FR1 |
2 km | 1310 nm | OSFP w/ Dual MPO 1x12 | 0 ~ 70°C | |
| OPS-5803PWG | 800 Gb/s | 1x800GBASE-DR8-2 2x400GBASE-DR4-2 8x100GBASE-FR1 |
2 km | 1310 nm | OSFP w/ MPO 1x16 | 0 ~ 70°C | |
| OPS-5810PWG | 2x400 Gb/s | 1x800GBASE-DR8++ 2x400GBASE-DR4++ 8x100GBASE-LR1 |
10 km | 1310 nm | OSFP w/ Dual MPO 1x12 | 0 ~ 70°C | |
| OPS-5811PWG | 800 Gb/s | 1x800GBASE-DR8++ 2x400GBASE-DR4++ 8x100GBASE-LR1 |
10 km | 1310 nm | OSFP w/ MPO 1x16 | 0 ~ 70°C | |
| OPS-5802PLWG | 2x400 Gb/s | 2x400GBASE-FR4 | 2 km | CWDM4 | OSFP w/ Dual Duplex LC | 0 ~ 70°C | |
| OPS-5810PLWG | 2x400 Gb/s | 2x400G-LR4-10 | 10 km | CWDM4 | OSFP w/ Dual Duplex LC | 0 ~ 70°C | |
