1G/2.5G/3.2Gbps

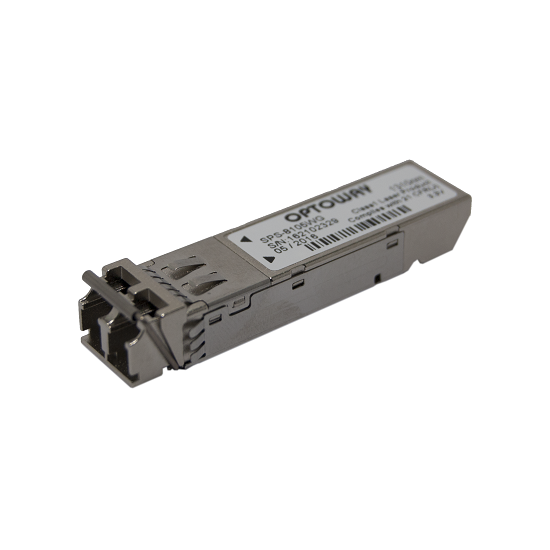

Multi-rate (3.2Gb/s) SFP 2-fiber

1 / 1
Multi-rate SFP MM LC
Product Number Bit Rate SONET
/SDH		 Reach Wavelength Package Temperature
Range		 TX Power RX Sens. Data
Sheet
SPM-9100RWG Multi-rate*   70 / 150 m 850 nm LC SFP    0 ~ 70°C -2.5 to -9 dBm -15 dBm
SPM-9100BRWG Multi-rate*   70 / 150 m 850 nm LC SFP -10 ~ 85°C -2.5 to -9 dBm -15 dBm
SPM-9100ARWG Multi-rate*   70 / 150 m 850 nm LC SFP -40 ~ 85°C -2.5 to -9 dBm -15 dBm
*3.185Gb/s,3.125Gb/s, 2.67Gb/s / OC-48 / 2X FC / GbE / 1X FC / OC-12 / OC-3


Multi-rate SFP SM LC
Product Number Bit Rate SONET
/SDH		 Reach Wavelength Package Temperature
Range		 TX Power RX Sens. Data
Sheet
SPS-9105RG Multi-rate*       5 km 1310 nm LC SFP    0 ~ 70°C -3 to -8 dBm -18 dBm
SPS-9105BRG Multi-rate*       5 km 1310 nm LC SFP -10 ~ 85°C -3 to -8 dBm -18 dBm
SPS-9105ARG Multi-rate*       5 km 1310 nm LC SFP -40 ~ 85°C -3 to -8 dBm -18 dBm
SPS-9120RG Multi-rate*     20 km 1310 nm DFB LC SFP    0 ~ 70°C  0 to -5 dBm -18 dBm
SPS-9120BRG Multi-rate*     20 km 1310 nm DFB LC SFP -10 ~ 85°C  0 to -5 dBm -18 dBm
SPS-9120ARG Multi-rate*     20 km 1310 nm DFB LC SFP -40 ~ 85°C  0 to -5 dBm -18 dBm
SPS-9140RG Multi-rate*     40 km 1310 nm DFB LC SFP    0 ~ 70°C  5 to  0 dBm -20 dBm
SPS-9140BRG Multi-rate*     40 km 1310 nm DFB LC SFP -10 ~ 85°C  5 to  0 dBm -20 dBm
SPS-9140ARG Multi-rate*     40 km 1310 nm DFB LC SFP -40 ~ 85°C  5 to  0 dBm -20 dBm
SPS-9340RG Multi-rate*     40 km 1550 nm DFB LC SFP    0 ~ 70°C  3 to -2 dBm -18 dBm
SPS-9340BRG Multi-rate*     40 km 1550 nm DFB LC SFP -10 ~ 85°C  3 to -2 dBm -18 dBm
SPS-9340ARG Multi-rate*     40 km 1550 nm DFB LC SFP -40 ~ 85°C  3 to -2 dBm -18 dBm
SPS-9380RG Multi-rate*     80 km 1550 nm DFB LC SFP    0 ~ 70°C  3 to -2 dBm -28 dBm
SPS-9380BRG Multi-rate*     80 km 1550 nm DFB LC SFP -10 ~ 85°C  3 to -2 dBm -28 dBm
SPS-9380ARG Multi-rate*     80 km 1550 nm DFB LC SFP -40 ~ 85°C  3 to -2 dBm -28 dBm
SPS-93100RG Multi-rate*   100 km 1550 nm DFB LC SFP    0 ~ 70°C  5 to  0 dBm -28 dBm
SPS-93100BRG Multi-rate*   100 km 1550 nm DFB LC SFP -10 ~ 85°C  5 to  0 dBm -28 dBm
SPS-93100ARG Multi-rate*   100 km 1550 nm DFB LC SFP -40 ~ 85°C  5 to  0 dBm -28 dBm
SPS-93120RG Multi-rate*   120 km 1550 nm DFB LC SFP    0 ~ 70°C  6 to  3 dBm -28 dBm
SPS-93120BRG Multi-rate*   120 km 1550 nm DFB LC SFP -10 ~ 85°C  6 to  3 dBm -28 dBm
SPS-93120ARG Multi-rate*   120 km 1550 nm DFB LC SFP -40 ~ 85°C  6 to  3 dBm -28 dBm
SPS-9105RWG Multi-rate*       5 km 1310 nm LC SFP with DMI    0 ~ 70°C -3 to -8 dBm -18 dBm
SPS-9105BRWG Multi-rate*       5 km 1310 nm LC SFP with DMI -10 ~ 85°C -3 to -8 dBm -18 dBm
SPS-9105ARWG Multi-rate*       5 km 1310 nm LC SFP with DMI -40 ~ 85°C -3 to -8 dBm -18 dBm
SPS-9120RWG Multi-rate*     20 km 1310 nm DFB LC SFP with DMI    0 ~ 70°C  0 to -5 dBm -18 dBm
SPS-9120BRWG Multi-rate*     20 km 1310 nm DFB LC SFP with DMI -10 ~ 85°C  0 to -5 dBm -18 dBm
SPS-9120ARWG Multi-rate*     20 km 1310 nm DFB LC SFP with DMI -40 ~ 85°C  0 to -5 dBm -18 dBm
SPS-9140RWG Multi-rate*     40 km 1310 nm DFB LC SFP with DMI    0 ~ 70°C  5 to  0 dBm -20 dBm
SPS-9140BRWG Multi-rate*     40 km 1310 nm DFB LC SFP with DMI -10 ~ 85°C  5 to  0 dBm -20 dBm
SPS-9140ARWG Multi-rate*     40 km 1310 nm DFB LC SFP with DMI -40 ~ 85°C  5 to  0 dBm -20 dBm
SPS-9340RWG Multi-rate*     40 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  3 to -2 dBm -18 dBm
SPS-9340BRWG Multi-rate*     40 km 1550 nm DFB LC SFP with DMI -10 ~ 85°C  3 to -2 dBm -18 dBm
SPS-9340ARWG Multi-rate*     40 km 1550 nm DFB LC SFP with DMI -40 ~ 85°C  3 to -2 dBm -18 dBm
SPS-9380RWG Multi-rate*     80 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  3 to -2 dBm -28 dBm
SPS-9380BRWG Multi-rate*     80 km 1550 nm DFB LC SFP with DMI -10 ~ 85°C  3 to -2 dBm -28 dBm
SPS-9380ARWG Multi-rate*     80 km 1550 nm DFB LC SFP with DMI -40 ~ 85°C  3 to -2 dBm -28 dBm
SPS-93100RWG Multi-rate*   100 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  5 to  0 dBm -28 dBm
SPS-93100BRWG Multi-rate*   100 km 1550 nm DFB LC SFP with DMI -10 ~ 85°C  5 to  0 dBm -28 dBm
SPS-93100ARWG Multi-rate*   100 km 1550 nm DFB LC SFP with DMI -40 ~ 85°C  5 to  0 dBm -28 dBm
SPS-93120RWG Multi-rate*   120 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  6 to  3 dBm -28 dBm
SPS-93120BRWG Multi-rate*   120 km 1550 nm DFB LC SFP with DMI -10 ~ 85°C  6 to  3 dBm -28 dBm
SPS-93120ARWG Multi-rate*   120 km 1550 nm DFB LC SFP with DMI -40 ~ 85°C  6 to  3 dBm -28 dBm
*3.185Gb/s,3.125Gb/s, 2.67Gb/s / OC-48 / 2X FC / GbE / 1X FC / OC-12 / OC-3


Multi-rate CWDM SFP SM LC
Product Number Bit Rate SONET
/SDH		 Power Budget Wavelength Package Temperature
Range		 TX Power RX Sens. Data
Sheet
SPS-9340R-CXX0G Multi-rate*   >18 dB CWDM** LC SFP    0 ~ 70°C 3 to -2 dBm -20 dBm
SPS-9340BR-CXX0G Multi-rate*   >18 dB CWDM** LC SFP   -5 ~ 85°C 3 to -2 dBm -20 dBm
SPS-9340AR-CXX0G Multi-rate*   >18 dB CWDM** LC SFP -40 ~ 85°C 3 to -2 dBm -20 dBm
SPS-9380R-CXX0G Multi-rate*   >28 dB CWDM** LC SFP    0 ~ 70°C 5 to 0 dBm -28 dBm
SPS-9380BR-CXX0G Multi-rate*   >28 dB CWDM** LC SFP   -5 ~ 85°C 5 to 0 dBm -28 dBm
SPS-9380AR-CXX0G Multi-rate*   >28 dB CWDM** LC SFP -40 ~ 85°C 5 to 0 dBm -28 dBm
SPS-93100R-CXX0G Multi-rate*   >31 dB CWDM** LC SFP    0 ~ 70°C 6 to 3 dBm -28 dBm
SPS-93100BR-CXX0G Multi-rate*   >31 dB CWDM** LC SFP   -5 ~ 85°C 6 to 3 dBm -28 dBm
SPS-93100AR-CXX0G Multi-rate*   >31 dB CWDM** LC SFP -40 ~ 85°C 6 to 3 dBm -28 dBm
SPS-9340RW-CXX0G Multi-rate*   >18 dB CWDM** LC SFP with DMI    0 ~ 70°C 3 to -2 dBm -20 dBm
SPS-9340BRW-CXX0G Multi-rate*   >18 dB CWDM** LC SFP with DMI   -5 ~ 85°C 3 to -2 dBm -20 dBm
SPS-9340ARW-CXX0G Multi-rate*   >18 dB CWDM** LC SFP with DMI -40 ~ 85°C 3 to -2 dBm -20 dBm
SPS-9380RW-CXX0G Multi-rate*   >28 dB CWDM** LC SFP with DMI    0 ~ 70°C 5 to 0 dBm -28 dBm
SPS-9380BRW-CXX0G Multi-rate*   >28 dB CWDM** LC SFP with DMI   -5 ~ 85°C 5 to 0 dBm -28 dBm
SPS-9380ARW-CXX0G Multi-rate*   >28 dB CWDM** LC SFP with DMI -40 ~ 85°C 5 to 0 dBm -28 dBm
SPS-93100RW-CXX0G Multi-rate*   >31 dB CWDM** LC SFP with DMI    0 ~ 70°C 6 to 3 dBm -28 dBm
SPS-93100BRW-CXX0G Multi-rate*   >31 dB CWDM** LC SFP with DMI   -5 ~ 85°C 6 to 3 dBm -28 dBm
SPS-93100ARW-CXX0G Multi-rate*   >31 dB CWDM** LC SFP with DMI -40 ~ 85°C 6 to 3 dBm -28 dBm
*  3.185Gb/s,3.125Gb/s, 2.67Gb/s / OC-48 / 2X FC / GbE / 1X FC / OC-12 / OC-3
**18 Wavelength : from 1270 nm to 1610 nm , each step 20 nm


Multi-rate (3.2Gb/s) DWDM SFP SM LC
Product Number Bit Rate SONET
/SDH		 Power
Budget		 Spacing / Wavelength Package Temperature
Range		 TX Power RX Sens. Data
Sheet
SPS-9350RW-DXXG Multi-rate*   >20 dB 100GHz / DWDM SFP with DMI   0 ~ 70°C  5 to 2 dBm -18 dBm
SPS-9350BRW-DXXG Multi-rate*   >20 dB 100GHz / DWDM SFP with DMI -10 ~ 85°C  5 to 2 dBm -18 dBm
SPS-9350ARW-DXXG Multi-rate*   >20 dB 100GHz / DWDM SFP with DMI -40 ~ 85°C  5 to 2 dBm -18 dBm
SPS-9380RW-DXXG Multi-rate*   >28 dB 100GHz / DWDM SFP with DMI   0 ~ 70°C  5 to 0 dBm -28 dBm
SPS-9380BRW-DXXG Multi-rate*   >28 dB 100GHz / DWDM SFP with DMI -10 ~ 85°C  5 to 0 dBm -28 dBm
SPS-9380ARW-DXXG Multi-rate*   >28 dB 100GHz / DWDM SFP with DMI -40 ~ 85°C  5 to 0 dBm -28 dBm
SPS-93120RW-DXXG Multi-rate*   >32 dB 100GHz / DWDM SFP with DMI   0 ~ 70°C  7 to 4 dBm -28 dBm
SPS-93120BRW-DXXG Multi-rate*   >32 dB 100GHz / DWDM SFP with DMI -10 ~ 85°C  7 to 4 dBm -28 dBm
SPS-93120ARW-DXXG Multi-rate*   >32 dB 100GHz / DWDM SFP with DMI -40 ~ 85°C  7 to 4 dBm -28 dBm
*  3.185Gb/s,3.125Gb/s, 2.67Gb/s / OC-48 / 2X FC / GbE / 1X FC / OC-12 / OC-3
