PRODUCTS
Fibre Channel

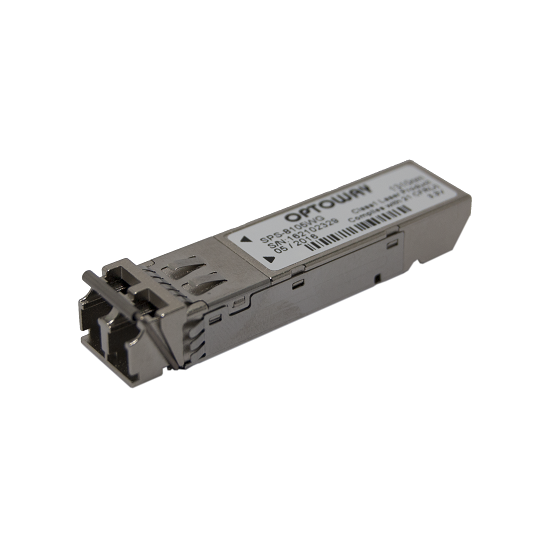

4G FC SFP 2-fiber

1 / 1
SFP MM LC
Product Number Bit Rate FC-PI Reach Wavelength Package Temperature
Range		 TX Power RX Sens. Data
Sheet
SPM-8101WG 4/2/1 Gb/s 400/200/100       500/1000 m 1310 nm LC SFP with DMI    0 ~ 70°C -2.5 to -9 dBm -15/-17/-18 dBm
SPM-8100WG 4/2/1 Gb/s 400/200/100 100/300/500 m   850 nm LC SFP with DMI -10 ~ 85°C -2.5 to -9 dBm -15/-17/-18 dBm
SPM-8100AWG 4/2/1 Gb/s 400/200/100 100/300/500 m   850 nm LC SFP with DMI -40 ~ 85°C -2.5 to -9 dBm -15/-17/-18 dBm
*up to 500 m at 4.25Gbps & up to 1000 m at 2.125 / 1.25 Gbps on 50/125 & 62.5 mm MMF


SFP SM LC
Product Number Bit Rate FC-PI Reach Wavelength Package Temperature
Range		 TX Power RX Sens. Data
Sheet
SPS-8105G 4/2/1 Gb/s 400/200/100 10/5 km* 1310 nm LC SFP    0 ~ 70°C -3 to -8 dBm -18 dBm
SPS-8105BG 4/2/1 Gb/s 400/200/100 10/5 km* 1310 nm LC SFP -10 ~ 85°C -3 to -8 dBm -18 dBm
SPS-8105AG 4/2/1 Gb/s 400/200/100 10/5 km* 1310 nm LC SFP -40 ~ 85°C -3 to -8 dBm -18 dBm
SPS-8110G 4/2/1 Gb/s 400/200/100 10 km 1310 nm DFB LC SFP    0 ~ 70°C -3 to -8 dBm -18 dBm
SPS-8110BG 4/2/1 Gb/s 400/200/100 10 km 1310 nm DFB LC SFP -10 ~ 85°C -3 to -8 dBm -18 dBm
SPS-8110AG 4/2/1 Gb/s 400/200/100 10 km 1310 nm DFB LC SFP -40 ~ 85°C -3 to -8 dBm -18 dBm
SPS-8120G 4/2/1 Gb/s 400/200/100 20 km 1310 nm DFB LC SFP    0 ~ 70°C  0 to -5 dBm -18 dBm
SPS-8120BG 4/2/1 Gb/s 400/200/100 20 km 1310 nm DFB LC SFP -10 ~ 85°C  0 to -5 dBm -18 dBm
SPS-8130G 4/2/1 Gb/s 400/200/100 30 km 1310 nm DFB LC SFP    0 ~ 70°C  4 to  0 dBm -18 dBm
SPS-8130BG 4/2/1 Gb/s 400/200/100 30 km 1310 nm DFB LC SFP -10 ~ 85°C  4 to  0 dBm -18 dBm
SPS-8340G 4/2/1 Gb/s 400/200/100 40 km 1550 nm DFB LC SFP    0 ~ 70°C  4 to  0 dBm -18 dBm
SPS-8340BG 4/2/1 Gb/s 400/200/100 40 km 1550 nm DFB LC SFP -10 ~ 85°C  4 to  0 dBm -18 dBm
SPS-8380G 4/2/1 Gb/s 400/200/100 80 km 1550 nm DFB LC SFP    0 ~ 70°C  4 to  0 dBm -26 dBm
SPS-83100G 4/2/1 Gb/s 400/200/100 100 km 1550 nm DFB LC SFP    0 ~ 70°C  5 to  1 dBm -27 dBm
SPS-83120G 4/2/1 Gb/s 400/200/100 120 km 1550 nm DFB LC SFP    0 ~ 70°C  6 to  3 dBm -27 dBm
SPS-8105WG 4/2/1 Gb/s 400/200/100 10/5 km* 1310 nm LC SFP with DMI    0 ~ 70°C -3 to -8 dBm -18 dBm
SPS-8105BWG 4/2/1 Gb/s 400/200/100 10/5 km* 1310 nm LC SFP with DMI -10 ~ 85°C -3 to -8 dBm -18 dBm
SPS-8105AWG 4/2/1 Gb/s 400/200/100 10/5 km* 1310 nm LC SFP with DMI -40 ~ 85°C -3 to -8 dBm -18 dBm
SPS-8110WG 4/2/1 Gb/s 400/200/100 10 km 1310 nm DFB LC SFP with DMI    0 ~ 70°C -3 to -8 dBm -18 dBm
SPS-8110BWG 4/2/1 Gb/s 400/200/100 10 km 1310 nm DFB LC SFP with DMI -10 ~ 85°C -3 to -8 dBm -18 dBm
SPS-8110AWG 4/2/1 Gb/s 400/200/100 10 km 1310 nm DFB LC SFP with DMI -40 ~ 85°C -3 to -8 dBm -18 dBm
SPS-8120WG 4/2/1 Gb/s 400/200/100 20 km 1310 nm DFB LC SFP with DMI    0 ~ 70°C  0 to -5 dBm -18 dBm
SPS-8120BWG 4/2/1 Gb/s 400/200/100 20 km 1310 nm DFB LC SFP with DMI -10 ~ 85°C  0 to -5 dBm -18 dBm
SPS-8130WG 4/2/1 Gb/s 400/200/100 30 km 1310 nm DFB LC SFP with DMI    0 ~ 70°C  4 to  0 dBm -18 dBm
SPS-8130BWG 4/2/1 Gb/s 400/200/100 30 km 1310 nm DFB LC SFP with DMI -10 ~ 85°C  4 to  0 dBm -18 dBm
SPS-8340WG 4/2/1 Gb/s 400/200/100 40 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  4 to  0 dBm -18 dBm
SPS-8340BWG 4/2/1 Gb/s 400/200/100 40 km 1550 nm DFB LC SFP with DMI -10 ~ 85°C  4 to  0 dBm -18 dBm
SPS-8380WG 4/2/1 Gb/s 400/200/100 80 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  4 to  0 dBm -26 dBm
SPS-83100WG 4/2/1 Gb/s 400/200/100 100 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  5 to  1 dBm -27 dBm
SPS-83120WG 4/2/1 Gb/s 400/200/100 120 km 1550 nm DFB LC SFP with DMI    0 ~ 70°C  6 to  3 dBm -27 dBm
*5 km at 4.25Gb/s and 10 km at 2.125/1.063 Gb/s


CWDM SFP SM LC
Product Number Bit Rate FC-PI Power
Budget		 Wavelength Package Temperature
Range		 TX Power RX Sens. Data
Sheet
SPS-8340-CXX0G 4/2/1 Gb/s 400/200/100 >18 dB CWDM* LC SFP   0 ~ 70°C  4 to 0 dBm -18 dBm
SPS-8360-CXX0G 4/2/1 Gb/s 400/200/100 >26 dB CWDM* LC SFP   0 ~ 70°C  4 to 0 dBm -26 dBm
SPS-8380-CXX0G 4/2/1 Gb/s 400/200/100 >28 dB CWDM* LC SFP   0 ~ 70°C  5 to 1 dBm -27 dBm
SPS-83100-CXX0G 4/2/1 Gb/s 400/200/100 >30 dB CWDM* LC SFP   0 ~ 70°C  6 to 3 dBm -27 dBm
SPS-8340W-CXX0G 4/2/1 Gb/s 400/200/100 >18 dB CWDM* LC SFP with DMI   0 ~ 70°C  4 to 0 dBm -18 dBm
SPS-8360W-CXX0G 4/2/1 Gb/s 400/200/100 >26 dB CWDM* LC SFP with DMI   0 ~ 70°C  4 to 0 dBm -26 dBm
SPS-8380W-CXX0G 4/2/1 Gb/s 400/200/100 >28 dB CWDM* LC SFP with DMI   0 ~ 70°C  5 to 1 dBm -27 dBm
SPS-83100W-CXX0G 4/2/1 Gb/s 400/200/100 >30 dB CWDM* LC SFP with DMI   0 ~ 70°C  6 to 3 dBm -27 dBm
*18 Wavelength : from 1270 nm to 1610 nm , each step 20 nm


4.25G DWDM SFP SM LC
Product Number Bit Rate FC-PI Power
Budget		 Spacing / Wavelength Package Temperature
Range		 TX Power RX Sens. Data
Sheet
SPS-8350W-DXXG 4/2/1 Gb/s 400/200/100 >20 dB 100GHz / DWDM SFP with DMI    0 ~ 70°C  5 to 2 dBm -18 dBm
SPS-8350BW-DXXG 4/2/1 Gb/s 400/200/100 >20 dB 100GHz / DWDM SFP with DMI -10 ~ 85°C  5 to 2 dBm -18 dBm
SPS-8350AW-DXXG 4/2/1 Gb/s 400/200/100 >20 dB 100GHz / DWDM SFP with DMI -40 ~ 85°C  5 to 2 dBm -18 dBm
SPS-8380W-DXXG 4/2/1 Gb/s 400/200/100 >26 dB 100GHz / DWDM SFP with DMI    0 ~ 70°C  5 to 0 dBm -26 dBm
SPS-8380BW-DXXG 4/2/1 Gb/s 400/200/100 >26 dB 100GHz / DWDM SFP with DMI -10 ~ 85°C  5 to 0 dBm -26 dBm
SPS-8380AW-DXXG 4/2/1 Gb/s 400/200/100 >26 dB 100GHz / DWDM SFP with DMI -40 ~ 85°C  5 to 0 dBm -26 dBm
SPS-83120W-DXXG 4/2/1 Gb/s 400/200/100 >26 dB 100GHz / DWDM SFP with DMI    0 ~ 70°C  7 to 4 dBm -26 dBm
SPS-83120BW-DXXG 4/2/1 Gb/s 400/200/100 >26 dB 100GHz / DWDM SFP with DMI -10 ~ 85°C  7 to 4 dBm -26 dBm
SPS-83120AW-DXXG 4/2/1 Gb/s 400/200/100 >26 dB 100GHz / DWDM SFP with DMI -40 ~ 85°C  7 to 4 dBm -26 dBm
