Fibre Channel

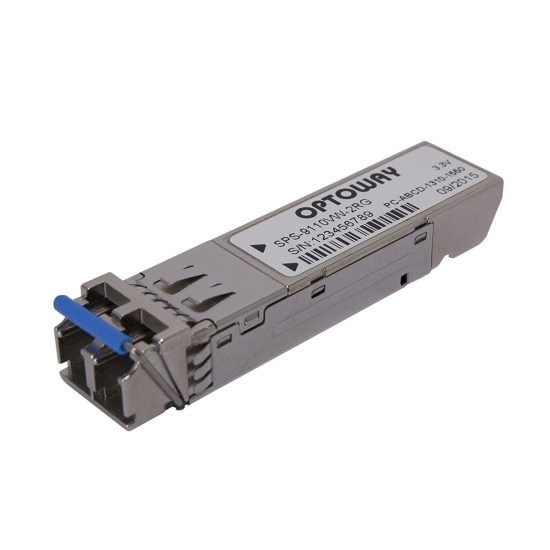

16G FC SFP+16GFC SFP+ Transceivers

1 / 1
- Compliant with SFP+ MSA
- Compliant with 16GFC
- Compliant with FCoE
- C-Band 50GHz & 100GHz ITU-Grid DWDM
- 12-Wavelength CWDM : 1270 nm to 1330 nm & 1470nm to 1610 nm
- Low Power Dissipation.
- Duplex LC Connector
- Single 3.3 V Power Supply
- RoHS-6 Compliant (lead-free)


16GFC SFP+ MM LC
Product Number FC 16G FC Reach Wavelength Package Temperature
Range		 Data
Sheet
SPM-6100WG 16/8/4 G 1600-SN 35/100/125 m* 850 nm VCSEL SFP+ with DMI    0 ~  70°C
SPM-6100BWG 16/8/4 G 1600-SN 35/100/125 m* 850 nm VCSEL SFP+ with DMI   -5 ~ -85°C
SPM-6100AWG 16/8/4 G 1600-SN 35/100/125 m* 850 nm VCSEL SFP+ with DMI -40 ~ -85°C
*RX with rate selected CDR


16GFC SFP+ SM LC
Product Number FC 16G FC Reach Wavelength Package Temperature
Range		 Data
Sheet
SPS-6110WG 16/8/4 G 1600-SM 10 km 1310 nm DFB SFP+ with DMI   0  ~ 70°C
SPS-6110BWG 16/8/4 G 1600-SM 10 km 1310 nm DFB SFP+ with DMI  -5  ~ 85°C
SPS-6110AWG 16/8/4 G 1600-SM 10 km 1310 nm DFB SFP+ with DMI -40 ~ 85°C
SPS-6340WG 16/8/4 G 1600-SM 40 km 1550 nm EML SFP+ with DMI    0 ~ 70°C
SPS-6340BWG 16/8/4 G 1600-SM 40 km 1550 nm EML SFP+ with DMI   -5 ~ 85°C
SPS-6340AWG 16/8/4 G 1600-SM 40 km 1550 nm EML SFP+ with DMI -40 ~ 85°C


16GFC SFP+ SM LC CWDM
Product Number FC 16G FC Reach Wavelength Package Temperature
Range		 Data
Sheet
SPS-6310W-CXX0G 16/8/4 G 1600-SM 10 km 1270~1330 nm SFP+ with DMI    0 ~ 70°C
SPS-6311W-CXX0G 16/8/4 G 1600-SM 10 km 1470~1610 nm SFP+ with DMI    0 ~ 70°C
SPS-6341W-CXX0G* 16/8/4 G 1600-SM 40 km 1470~1610 nm SFP+ with DMI    0 ~ 70°C
*RX with rate selected CDR


16GFC SFP+ SM LC DWDM
Product Number FC Reach Spacing Wavelength Package Temperature
Range		 Data
Sheet
SPS-6341W-DXXG* 16/8/4 G 40 km 100 GHz DWDM SFP+ with DMI    0 ~ 70°C
SPS-6345W-DXXXG* 16/8/4 G 40 km   50 GHz DWDM SFP+ with DMI    0 ~ 70°C
*RX with rate selected CDR
