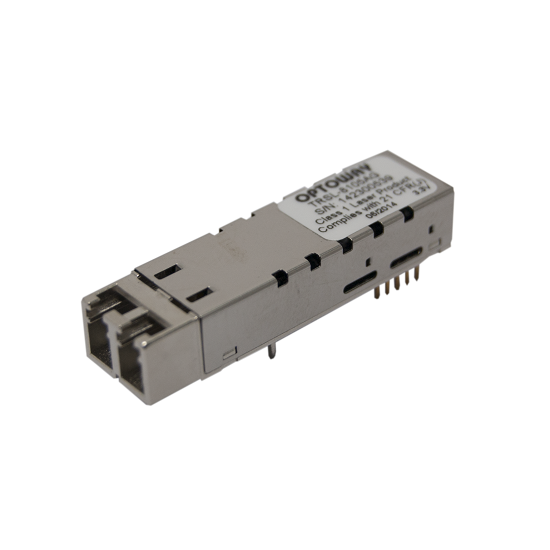

- MSA Small Form Factor (SFF) Transceivers
- 18-wavelength CWDM Transceiver Compliant with ITU-T G.694.2
- 1310 nm and 1550 nm Long-wavelength for Single-mode Fiber Applications
- 850 nm Short-wavelength for Multi-mode Fiber Applications
- Compliant Models for STM-16/OC-48 SR, IR and LR
- Single 3.3V Supply
- RoHS Compliant
SFF MM LC
| Product Number | Bit Rate | SONET /SDH |
Reach | Wavelength | Package | Temperature Range |
TX Power | RX Sens. | Data Sheet |
| TRML-9100G | 2.5 Gb/s | 150*/300 m** | 850 nm | 2x5 LC | 0 ~ 70°C | -4 to -9 dBm | -15 dBm |  |
|
| TRML-9100AG | 2.5 Gb/s | 150*/300 m** | 850 nm | 2x5 LC | -40 ~ 85°C | -4 to -9 dBm | -15 dBm | |
SFF SM LC
| Product Number | Bit Rate | SONET /SDH |
Reach | Wavelength | Package | Temperature Range |
TX Power | RX Sens. | Data Sheet |
| TRSL-9102G | 2.488 Gb/s | SR/I-16 | 2 km | 1310 nm | 2x5 LC | 0 ~ 70 °C | -3 to -9.5 dBm | -18dBm | |
| TRSL-9102AG | 2.488 Gb/s | SR/I-16 | 2 km | 1310 nm | 2x5 LC | -40 ~ 85 °C | -3 to -9.5 dBm | -18dBm | |
| TRSL-9115G | 2.488 Gb/s | IR-1/S-16.1 | 15 km | 1310 nm DFB | 2x5 LC | 0 ~ 70 °C | 0 to -5 dBm | -18dBm | |
| TRSL-9115AG | 2.488 Gb/s | IR-1/S-16.1 | 15 km | 1310 nm DFB | 2x5 LC | -40 ~ 85 °C | 0 to -5 dBm | -18 dBm | |
| TRSL-9340G | 2.488 Gb/s | IR-2/S-16.2 | 40 km | 1550 nm DFB | 2x5 LC | 0 ~ 70 °C | 3 to -2 dBm | -20 dBm | |
| TRSL-9340AG | 2.488 Gb/s | IR-2/S-16.2 | 40 km | 1550 nm DFB | 2x5 LC | -40 ~ 85 °C | 3 to -2 dBm | -20 dBm | |
| TRSL-9140G | 2.488 Gb/s | IR-1/S-16.1 | 40 km | 1310 nm DFB | 2x5 LC | 0 ~ 70 °C | 3 to -2 dBm | -28 dBm | |
| TRSL-9140AG | 2.488 Gb/s | IR-1/S-16.1 | 40 km | 1310 nm DFB | 2x5 LC | -40 ~ 85 °C | 3 to -2 dBm | -28 dBm | |
| TRSL-9380G | 2.488 Gb/s | IR-2/S-16.2 | 80 km | 1550 nm DFB | 2x5 LC | 0 ~ 70 °C | 3 to -2 dBm | -28 dBm | |
| TRSL-9102WG | 2.488 Gb/s | SR/I-16 | 2 km | 1310 nm | 2x10 LC | 0 ~ 70 °C | -3 to -9.5 dBm | -18 dBm | |
| TRSL-9102AWG | 2.488 Gb/s | SR/I-16 | 2 km | 1310 nm | 2x10 LC | -40 ~ 85 °C | -3 to -9.5 dBm | -18 dBm | |
| TRSL-9115WG | 2.488 Gb/s | IR-1/S-16.1 | 15 km | 1310 nm DFB | 2x10 LC | 0 ~ 70 °C | 0 to -5 dBm | -18 dBm | |
| TRSL-9115AWG | 2.488 Gb/s | IR-1/S-16.1 | 15 km | 1310 nm DFB | 2x10 LC | -40 ~ 85 °C | 0 to -5 dBm | -18 dBm | |
| TRSL-9340WG | 2.488 Gb/s | IR-2/S-16.2 | 40 km | 1550 nm DFB | 2x10 LC | 0 ~ 70 °C | 3 to -2 dBm | -20 dBm | |
| TRSL-9340AWG | 2.488 Gb/s | IR-2/S-16.2 | 40 km | 1550 nm DFB | 2x10 LC | -40 ~ 85 °C | 3 to -2 dBm | -20 dBm | |
CWDM SFF SM LC
| Product Number | Bit Rate | SONET /SDH |
Power Budget |
Wavelength | Package | Temperature Range |
TX Power | RX Sens. | Data Sheet |
| TRSL-9340-CXX0G | 2.488 Gb/s | >18 dB | CWDM* | 2x5 LC | 0 ~ 70 °C | 3 to -2 dBm | -20 dBm | |
|
| TRSL-9380-CXX0G | 2.488 Gb/s | >28 dB | CWDM* | 2x5 LC | 0 ~ 70 °C | 5 to 0 dBm | -28 dBm | |
|
| TRSL-9340W-CXX0G | 2.488 Gb/s | >18 dB | CWDM* | 2x10 LC | 0 ~ 70 °C | 3 to -2 dBm | -20 dBm | |
