Fibre Channel

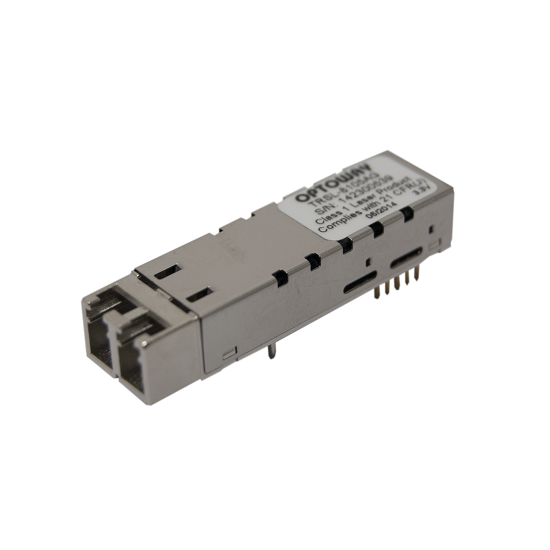

2G/1G FC SFF

1 / 1
- MSA Small Form Factor (SFF) Transceivers
- 18-wavelength CWDM Transceiver Compliant with ITU-T G.694.2
- 1310 nm and 1550 nm Long-wavelength for Single-mode Fiber Applications
- 850 nm Short-wavelength for Multi-mode Fiber Applications
- Compliant Models for Fibre Channel FC-PI 2x/1x
- Single 3.3V Supply
- RoHS Compliant


SFF MM LC
Product Number Bit Rate 1000BASE Reach Wavelength Package Temperature
Range		 TX Power RX Sens. Data Sheet
TRML-9100FG 2.125/1.063 Gb/s SX 300*/500 m** 850 nm 2x5 LC    0 ~ 70 °C -4 to -9 dBm -15 dBm
TRML-9100AFG 2.125/1.063 Gb/s SX 300*/500 m** 850 nm 2x5 LC -40 ~ 85 °C -4 to -9 dBm -15 dBm
*150 m links with 62.5/125 µm MMF Cables and 300 m links with 50/125 µm MMF Cables


SFF SM LC
Product Number Bit Rate FC-PI Reach Wavelength Package Temperature
Range		 TX Power RX Sens. Data Sheet
TRSL-9110FG 2.125/1.063 Gb/s 200/100   10 km 1310 nm 2x5 LC    0 ~ 70 °C -3 to -9.5 dBm -21 dBm
TRSL-9110AFG 2.125/1.063 Gb/s 200/100   10 km 1310 nm 2x5 LC -40 ~ 85 °C -3 to -9.5 dBm -21 dBm
TRSL-9140FG 2.125/1.063 Gb/s 200/100   40 km 1310 nm DFB 2x5 LC    0 ~ 70 °C  5 to     0 dBm -23 dBm
TRSL-9380FG 2.125/1.063 Gb/s 200/100   80 km 1550 nm DFB 2x5 LC    0 ~ 70 °C  5 to     0 dBm -23 dBm
TRSL-93120FG 2.125/1.063 Gb/s 200/100 120 km 1550 nm DFB 2x5 LC    0 ~ 70 °C  5 to     0 dBm -30 dBm


CWDM SFF SM LC
Product Number Bit Rate FC-PI Power
Budget		 Wavelength Package Temperature
Range		 TX Power RX Sens. Data Sheet
TRSL-9380F-CXX0G 2.125/1.063 Gb/s 200/100 >23 dB CWDM* 2x5 LC    0 ~ 70 °C  5 to 0 dBm -23 dBm
TRSL-93120F-CXX0G 2.125/1.063 Gb/s 200/100 >30 dB CWDM* 2x5 LC    0 ~ 70 °C  5 to 0 dBm -30 dBm
CWDM *  18-Wavelength from 1270 nm to 1610 nm, each step 20 nm
